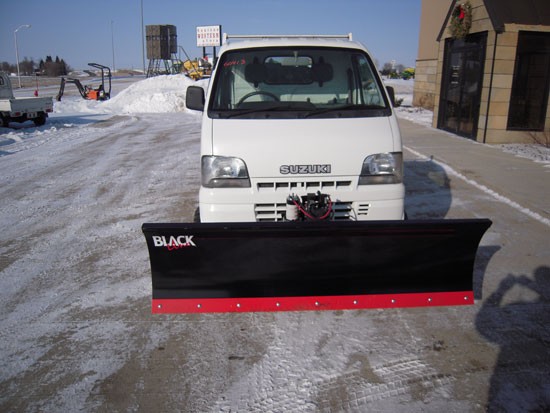

Japanese Mini Truck Snow Plow
Snowplows are available now! Available for Mini Trucks and ATVs! Now you can control your plow like a full-size truck plow! With our plows you have full control of your plow from the comfort of your seat you can raise, lower and angle your blade with a push of the button!
Plow Specifications & Features
- Width’s available: 52", 60", 72"
- Blade material thickness: 16ga cold rolled steel (replaceable)
- Blade Height: 21"
- Blade Angled Dimensions: (Based on approximately 20 degree angle capability) 52" = 48-1/4" 60" = 56-3/8" 72" = 67-5/8"
- Weights: 52"= 92.35 lbs. 60"= 99.11 lbs. 72"= 107.19 lbs
- Powder coat: 1000 hr salt spray/UV rated
Electric Actuator:
- Force: 650lbs of force in both directions
- Speed: 1" per second
- Features: Nitrotec® treated shaft for superior corrosion resistance and 40% greater cross strength
- Auto-reset thermal protection
- Mechanical torque limiter
- Integrated manual override
Wiring Harness:
- Industrial membrane switch technology
- Automotive sealed connectors
- In-line 20amp fuse
- Universal mounting
- “Bull Dozer" position: Ability to “lock" blade in position while grading dirt/gravel to prevent constant blade tripping
- Trip Springs: 4 custom-designed, 1-1/4" diameter, Clear Zinc plated finish
- Skids: Disc type
- Rotates 360° for longer wear
- Wear Bar: Replaceable/Adjustable
- 3/16" thickness/grade 50 steel
- Installation: Fits standard 2" receiver.
AVAILABLE snow plow KITS
Please call for available snow plows.
